Chapter 11: Hand-building a Boot ROM-acceptable image¶
The preceding examples use a host upload. Can the same program start with only an SD card in the board?
The ROM does not need a filesystem for this small image. It looks for a boot structure at a particular media offset, reads the image into RAM and uses the entry field to start execution. Following those bytes explains why the first instruction lands where the linker put it. No card write is required to understand the layout.
This remains an unsigned, OCRAM-only image for an open development device. A dedicated spare card is required for the SD route. USB loading can be completed without writing any card.
11.1 What we produced last chapter, in detail¶
Recap the structure of led.imx from Chapter 9, viewed as a sequence of file offsets:
file offset content size
0x0000 (pad) 0x400 bytes
0x0400 IVT header 4 bytes
0x0404 IVT.entry 4 bytes
0x0408 IVT.reserved1 4 bytes
0x040C IVT.dcd 4 bytes
0x0410 IVT.boot_data 4 bytes
0x0414 IVT.self 4 bytes
0x0418 IVT.csf 4 bytes
0x041C IVT.reserved2 4 bytes
0x0420 BootData.start 4 bytes
0x0424 BootData.length 4 bytes
0x0428 BootData.plugin 4 bytes
0x042C (pad) 0xBD4 bytes
0x1000 _start first instruction
0x1000+N end of code
In SDP mode, uuu finds the IVT, skips the first 0x400 bytes, and uploads the IVT to its self address. In SD-card mode, we write the whole file at byte 0 of the card. The 0x400 bytes of padding in the file place the IVT at LBA 2, where the ROM expects it.

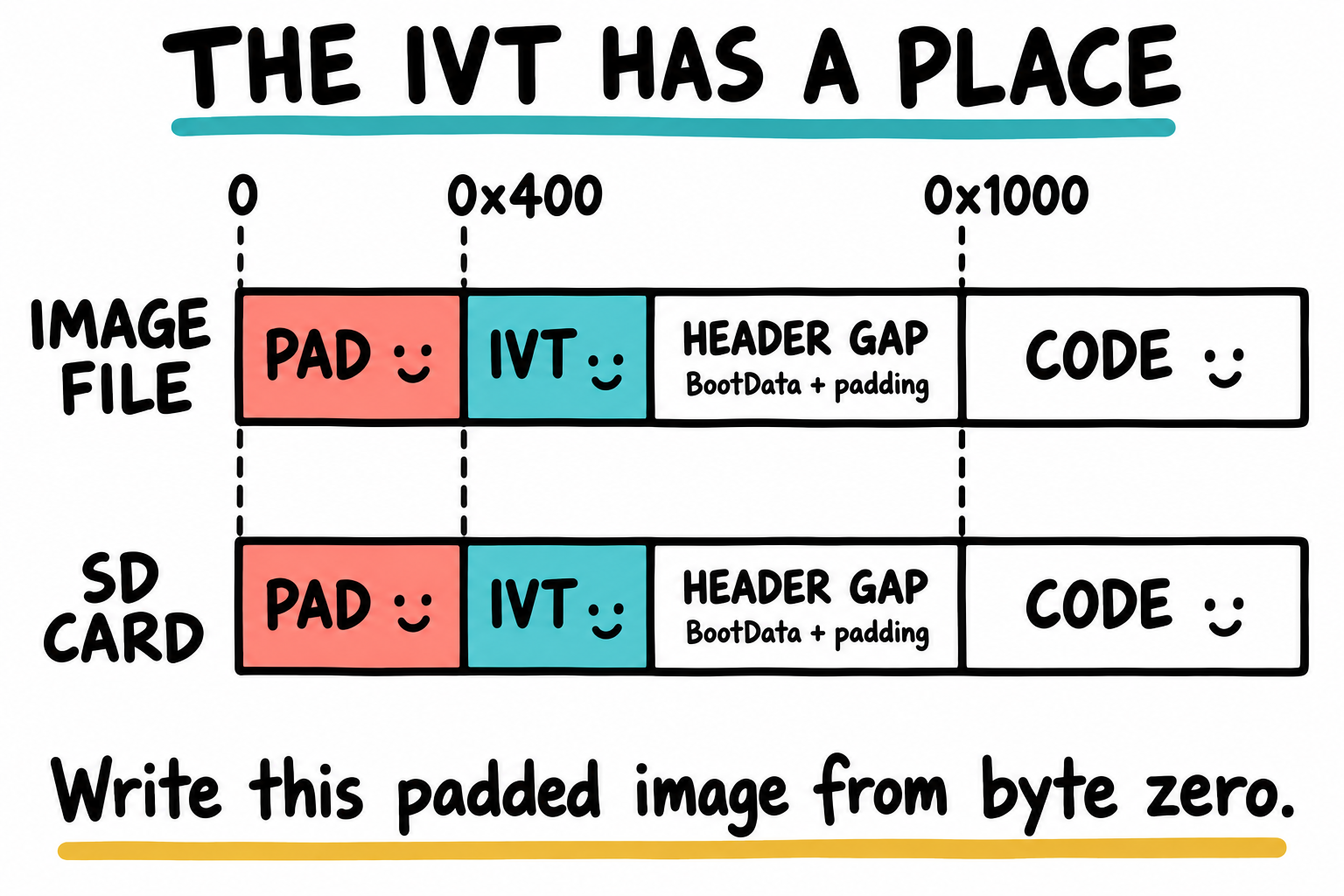

For this primary SD boot layout, the file starts at media byte zero and its IVT lands at byte 0x400. Other boot areas, secondary-image settings and devices need their own placement checks. Do not turn this example into a rule for every eMMC configuration.
The file already supplies the gap before its IVT. Adding another gap at the card would shift the structure away from the expected offset. These are file and media coordinates, not RAM addresses. Block widths are not to scale.¶
11.2 mkimx.py, our own image builder¶
Save as ~/imx6ull/scripts/mkimx.py:
#!/usr/bin/env python3
"""
mkimx.py -- build an i.MX6ULL boot image from a flat binary.
The output is a file that:
- Has a 0x400-byte leading pad before the primary SD IVT.
- Then an IVT at file offset 0x400 (= byte 1024).
- Then BootData immediately after the IVT.
- Then padding to offset 0x1000.
- Then the user binary at file offset 0x1000.
Usage:
mkimx.py <input.bin> <output.imx>
"""
import argparse
import struct
from pathlib import Path
IVT_TAG = 0xD1
IVT_LENGTH = 0x0020 # 32 bytes, big-endian per spec
IVT_VERSION = 0x40
IVT_OFFSET = 0x400 # IVT offset from the beginning of the file
CODE_OFFSET = 0x1000 # user binary offset from the beginning of the file
def ivt_header():
# The IVT header is 4 bytes:
# byte 0 = tag (0xD1)
# byte 1-2 = length (BIG endian, 16-bit)
# byte 3 = version (0x40 = HAB v4)
return struct.pack('>BHB', IVT_TAG, IVT_LENGTH, IVT_VERSION)
def build(input_bin: str, output_imx: str, image_start: int):
with open(input_bin, 'rb') as f:
code = f.read()
if Path(input_bin).resolve() == Path(output_imx).resolve():
raise ValueError('Input and output paths must differ')
if image_start < 0x00907000 or image_start % 32:
raise ValueError('Use a 32-byte-aligned base in the free OCRAM window')
if not code or image_start + CODE_OFFSET + len(code) > 0x00918000:
raise ValueError('Payload must be nonempty and fit ROM-active OCRAM')
ivt_addr = image_start + IVT_OFFSET
bootdata_addr = ivt_addr + 0x20
entry_addr = image_start + CODE_OFFSET
csf_addr = 0
dcd_addr = 0
image_size = CODE_OFFSET + len(code)
# IVT: header (4) + 7 little-endian words = 32 bytes
ivt = ivt_header()
ivt += struct.pack('<IIIIIII',
entry_addr,
0, # reserved1
dcd_addr,
bootdata_addr,
ivt_addr, # self
csf_addr,
0) # reserved2
assert len(ivt) == 0x20, len(ivt)
# BootData: start, length, plugin
bootdata = struct.pack('<III', image_start, image_size, 0)
assert len(bootdata) == 12
# Lay out the complete file header, including the leading 0x400 bytes.
header = bytearray(CODE_OFFSET)
header[IVT_OFFSET:IVT_OFFSET + 0x20] = ivt
header[IVT_OFFSET + 0x20:IVT_OFFSET + 0x2C] = bootdata
out = bytes(header) + code
# UUU uploads the IVT at ivt_addr. The code must then land at entry_addr.
loaded_code_addr = ivt_addr + (CODE_OFFSET - IVT_OFFSET)
assert loaded_code_addr == entry_addr
with open(output_imx, 'wb') as f:
f.write(out)
print(f" image = 0x{image_start:08X}")
print(f" entry = 0x{entry_addr:08X}")
print(f" IVT @ 0x{ivt_addr:08X} (file offset 0x{IVT_OFFSET:04X})")
print(f" bdata @ 0x{bootdata_addr:08X}")
print(f" code @ 0x{entry_addr:08X} (file offset 0x{CODE_OFFSET:04X})")
print(f" total = {len(out)} bytes")
print(f" wrote {output_imx}")
def main():
ap = argparse.ArgumentParser()
ap.add_argument('input')
ap.add_argument('output')
ap.add_argument('--image-start', type=lambda s: int(s, 0),
default=0x00907000,
help='RAM address corresponding to file offset 0')
args = ap.parse_args()
try:
build(args.input, args.output, args.image_start)
except (OSError, ValueError) as exc:
ap.error(str(exc))
if __name__ == '__main__':
main()
Run the script with python3, so it needs no executable-permission change. It builds the same simple layout as Chapter 9, with input and output filenames supplied explicitly. DCD, DDR-resident images and signatures are outside this tool’s scope.
The length field in the IVT header is big-endian. Everything else in the IVT is little-endian. The
struct.pack('>BHB', ...)line handles this difference. This is the most common “I wrote my own mkimage and the ROM rejects it” bug.BootData.startis0x00907000. File offset0corresponds to that address. The IVT at file offset0x400therefore corresponds to0x00907400.BootData.lengthincludes all bytes through the end of the code. It is not only the code size. If you forget theCODE_OFFSETpart, the ROM stops loading before your.textbegins.csf_addr = 0says this image provides no Command Sequence File for HAB authentication. It does not disable the device’s security policy or bypass authentication on a closed device. This unsigned example depends on an open development configuration. Do not program fuses to make it run. Chapter 124 covers signed boot.
11.3 Building and inspecting¶
Rebuild Chapter 10’s LED:
$ cd ~/imx6ull/src/ch10-c-startup
$ make
$ python3 ~/imx6ull/scripts/mkimx.py led.bin led.imx
image = 0x00907000
entry = 0x00908000
IVT @ 0x00907400 (file offset 0x0400)
bdata @ 0x00907420
code @ 0x00908000 (file offset 0x1000)
total = ... bytes
wrote led.imx
Source ~/imx6ull/scripts/env.sh first in a new build terminal. The total size depends on your led.bin. The address lines must match this default layout. The builder keeps its offsets consistent, but it cannot discover how the input binary was linked. Check the ELF entry and first instruction as well. In Chapter 10, that instruction is the vector-slot branch to _start.
Verify the IVT with raw xxd:
$ xxd -s 0x400 -l 32 led.imx
00000400: d100 2040 0080 9000 0000 0000 0000 0000 .. @............
00000410: 2074 9000 0074 9000 0000 0000 0000 0000 t...t..........
$ xxd -s 0x420 -l 4 led.imx
00000420: 0070 9000 .p..
Decode:
Word |
Bytes (LE) |
Value |
Field |
|---|---|---|---|
|
|
tag/length/version (big-endian length!) |
IVT header |
|
|
|
entry ✓ |
|
|
0 |
reserved1 |
|
|
0 |
dcd (none) |
|
|
|
boot_data ✓ |
|
|
|
self ✓ |
|
|
0 |
csf |
|
|
0 |
reserved2 |
|
|
|
BootData.start ✓ |
|
Varies |
Complete file size |
BootData.length |
|
|
0 |
BootData.plugin |
BootData.length must equal the complete file size. It covers the leading pad, IVT, BootData, padding, and program code.
11.4 Path A, SDP push, again¶
Push to the board exactly as in Chapter 9:
$ sudo "$IMX6ULL_HOME/build/mfgtools/uuu/uuu" led.imx
1:18 1/ 1 [Done ] SDP: boot -f led.imx
If the LED blinks, record that observation as an SDP execution check for your board. A valid-looking header alone would only prove the file structure.
11.5 Path B, SD card boot, the real thing¶
Storage safety: Before any command that names /dev/sdX, run lsblk -o NAME,SIZE,MODEL,TRAN,TYPE,MOUNTPOINTS. Verify the removable card using insertion/removal, capacity and available identity fields. A USB reader’s model or serial may identify the reader, not the card. Unmount its partitions and stop if the path is uncertain. Writing the wrong device can destroy the host disk.
The SD path changes where the ROM obtains the image, not the payload’s C startup contract.
On the i.MX6ULL with BOOT_CFG set for SD card, the ROM looks for an IVT at LBA 2, which is byte offset 0x400. Our .imx file already contains 0x400 bytes before its IVT. Therefore the file must be written starting at byte 0 of the card.
Use Chapter 8’s manual identification flow, not a disk-letter filter. Run lsblk -o NAME,PATH,SIZE,MODEL,SERIAL,TRAN,RM,TYPE,MOUNTPOINTS before and after insertion. Match the spare card by identity and capacity. Reject host, system and data disks. Recheck every time: /dev/sdc below is only an example. Unmount each mounted card partition with its actual path, then inspect lsblk again. Stop if any identity or mountpoint is uncertain.
From the directory containing the built led.imx, check the input with ls -l led.imx, then write from byte zero to the identified whole card:
$ sudo dd if=led.imx of=/dev/sdc bs=1M conv=fsync status=progress
$ sync
Do not add seek=1. The image already includes the first 1 KB. Adding another 1 KB would move the IVT to byte offset 0x800, and the ROM would not find it.
After flushing, remove/reinsert the card and identify it again. Compare exactly the image’s byte count, substituting the newly confirmed device path:
$ sudo cmp -n "$(stat -c %s led.imx)" led.imx /dev/sdc
stat -c %s prints the file size; cmp -n compares that many bytes. Success is silent with exit status zero. A difference/read error means stop and investigate. This tiny raw image creates no filesystem or Linux partitions, so a partition listing is not its verification. Readback proves stored bytes, not ROM execution. Use a dedicated spare card; this layout is not a generic GPT-compatible image.
Before installing the card, follow Chapter 8’s power-down procedure and leave the board unpowered:
Eject the SD card.
Insert into the board.
Set boot-mode switch to SD.
Power on.
Watch the LED.
If it blinks, you have booted an i.MX6ULL from an SD card you produced byte by byte. No U-Boot, no mkimage, and no Yocto were involved.
11.6 Key Notes¶
File offsets, media offsets and RAM addresses are different coordinates. In this primary SD layout, writing the already-padded file at media byte zero places the IVT at
0x400. An extra seek would shift it out of place.SDP omits the leading file padding and loads the IVT at
IVT.self. The offset difference from IVT to payload must still land the first instruction at the linked entry address.The IVT header length is big-endian while its address words are little-endian.
D1 20 00 40encodes the wrong length even if the remaining fields look plausible.BootData.lengthcovers the complete image, not only.text. The builder owns the wrapper layout but cannot infer the input binary’s link address.An entry mismatch is a file-consistency defect, not a useful execution experiment. Intentionally corrupt images must not be uploaded to branch into unintended instructions.
A valid header, successful USB transaction, card readback and payload execution establish different properties. None substitutes for the others, and this OCRAM-only builder supplies neither DDR setup nor signed-boot authentication.
11.7 Pitfalls¶
Endianness of IVT header length. Big-endian. The rest of the IVT is little-endian. Easy to miss.
BootData.lengthshorter than the file. Tail bytes are not loaded. We always set it to “everything from start of image to end of code, including the 4 KB header gap.”Changing one offset without changing the address calculation. Keep the assertion in the script. It catches a code-location and entry mismatch before the image reaches the board.
Writing to the wrong block device. Repeat Chapter 8’s manual identification and mount checks at the moment of writing. There is no helper that turns an uncertain device into a safe target.
syncforgotten afterdd. Linux’s page cache is fast. A “complete”ddmay still have a buffer in RAM. Alwayssync(ordd conv=fsync) before pulling the card.Booting the same SD card on a different SoC. This image is i.MX6ULL-specific. Reusing it on another i.MX6 variant may or may not work. The IVT is the same format but load addresses change. Build per board.
11.8 Going deeper¶
IMX6ULLRM Chapter 8, Section 8.7: program-image structures, including IVT and BootData. Section 8.1 describes open-versus-closed HAB behavior.
U-Boot source:
tools/imximage.c: the reference C implementation. Compare againstmkimx.py. You’ll see we covered the simple case correctly.NXP
imx-mkimagesource:<https://github.com/nxp-imx/imx-mkimage>. Its newer-SoC image recipes are not the i.MX6ULL image format taught here. Chapter 22 does not require a TF-A stage for this Cortex-A7 board.uuuscript reference:man uuu.1or the README inmfgtools. Especially the SDP commands list.
The two boot paths can lead to the same LED payload through different loading mechanisms. Chapter 12 adds UART text, so a program can report which step it reached rather than leaving everything to a blink.
