Chapter 18C: Bare-metal RTC

After a restart, the ordinary uptime counter begins again at zero. A log timestamp should not. Which counter can keep advancing while the CPU and DDR have no power, and how does the CPU read it after returning?

The Secure Non-Volatile Storage (SNVS) block has separate high-power (HP) and low-power (LP) sections. We use its LP real-time counter and one retained general-purpose register. “Always-on” is a supply requirement, not a promise: if the LP supply disappears, so does its retained state.

This is a bare-metal counter/retention design case. Setting a counter to zero does not set a wall clock, and deliberately causing a brown-out is not needed. Keep Chapter 18A’s startup, linker, toolchain, and fresh-ROM handoff policy; initialize Chapter 16’s GPT delay source before using the driver below.

18C.1 What the SNVS provides

The supplied IMX6ULLRM Rev. 1, Chapter 48 describes:

  • An HP real-time counter and its alarm, which lose state with system power.

  • An LP section with the retained counter, control/security state, monotonic counter, and general-purpose register.

  • A 32-bit LPGPR at offset 0x68 described in Section 48.7.14: retained space for one marker or counter, not a general byte-addressable buffer.

  • A monotonic counter incremented by permitted writes, not automatically by every chip reset. It has security and fuse-era behavior; we do not use it as a reboot counter or program its fuses.

The public RM describes the LP counter but omits its register fields. The starred entries in Section 18C.3 use the Linux v6.12 SNVS RTC implementation as an additional reference. NXP’s migration guide, Table 1 and clarification of the omission explain the UL-to-ULL relationship. Obtain matching NXP security/reference documentation for production use. This example does not provision security.

18C.2 Powering SNVS

Follow the actual nets, rather than a generic VBAT label:

Reference sheet

What it shows

MINI v2.2 sheet 4

CR1, labelled 1220, feeding VDD_COIN_3V

CORE sheet 8, internal project CL6Y2CB_V1.9

VDD_COIN_3V on J1 pin 41

CORE sheet 2

D1 from VDD_SNVS_3V3 and D2 from VDD_COIN_3V feeding VDD_SNVS_IN; R34 1.5 kOhm is also drawn across the coin-cell diode path

CORE sheet 6

Y1 32.768 kHz at RTC_XTALI/RTC_XTALO, separate from the 24 MHz main reference

These connections are not a battery compatibility or lifetime guarantee. Check the fitted circuit, cell chemistry/polarity, and supplier-approved arrangement, including any current through R34. Do not assume every “1220” holder accepts a rechargeable cell or that a supercapacitor can be substituted.

The supplied industrial electrical datasheet Sections 4.1.6.3 and 4.2 require the SNVS supply first on and last off, and forbid externally driving an unpowered I/O domain. Follow the matching datasheet and Chapter 8’s power/back-power inventory. CPU register access still needs the main-powered HP interface and its clocks; a coin cell does not keep the Cortex-A7 or that bus interface running.

An ordinary main-power cycle can retain LP state when its supply remains valid. It is different from LP power-on reset or LP software reset. With no working backup path, warm reset may preserve the count while complete power removal does not. Measure and document the supply conditions before interpreting a retention result.

18C.3 Register map (relevant subset)

SNVS base is 0x020CC000. Offsets here are relative to that base, not to the LP subrange used by some Linux device-tree nodes.

Register

Offset

Purpose

SNVS_HPLR

+0x00

HP lock register; do not set locks for this example

SNVS_HPCOMR

+0x04

HP command/access policy; not an innocuous initialization write

SNVS_LPLR

+0x34

LP lock register

SNVS_LPCR

+0x38

LP control; SRTC_ENV is bit 0*

SNVS_LPSR

+0x4C

LP status, including write-one-to-clear fields

SNVS_LPSRTCMR*

+0x50

Counter bits 46:32 in register bits 14:0

SNVS_LPSRTCLR*

+0x54

Counter bits 31:0

SNVS_LPTAR*

+0x58

LP alarm’s 32-bit seconds value; not armed in this example

SNVS_LPGPR

+0x68

One 32-bit retained general-purpose register

The LP counter is 47 bits of 32.768 kHz ticks: 32 whole-second bits and 15 fractional bits. Form ((uint64_t)(hi & 0x7FFF) << 32) | lo, then shift right by 15. Equivalently, seconds are ((hi & 0x7FFF) << 17) | (lo >> 15). At 32768 ticks, seconds must be 1; at 65536 ticks, 2. These are useful arithmetic checks without a board.

The counter stores a number, not a calendar or a timezone. Software chooses the epoch by setting that number. An unsigned 32-bit Unix-seconds choice reaches its limit in 2106; a signed 32-bit software representation has a different 2038 limit. Neither is a 64-bit-seconds hardware RTC.

18C.4 Driver

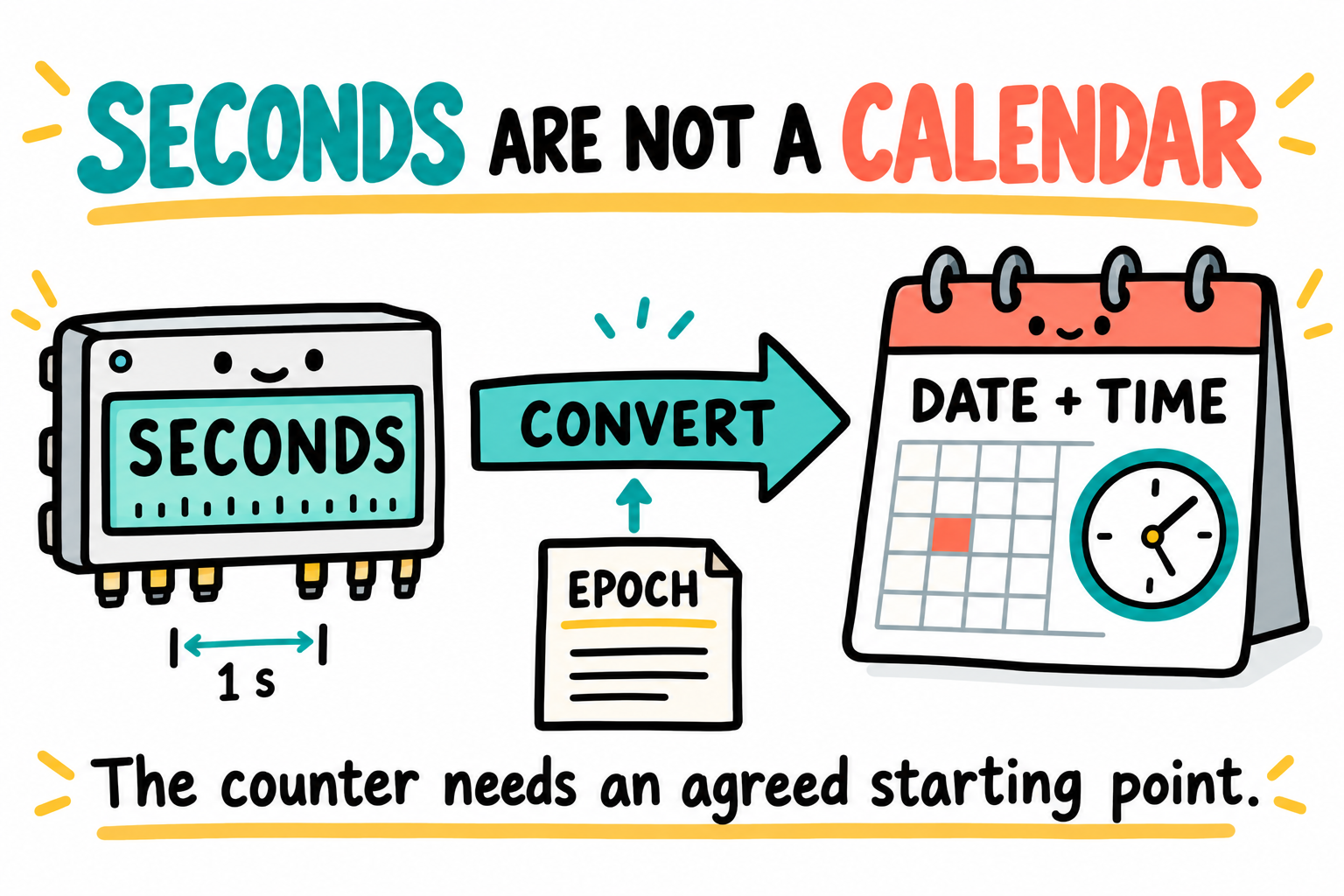

A whole-second value derived from the RTC counter is converted into a date and time using a software-chosen epoch. The counter does not supply a calendar itself.

The raw SNVS counter counts ticks. Here, “seconds” means the value after removing its fractional bits. Turning that number into a calendar needs an agreed epoch and software conversion. A running counter alone does not establish a valid date.

Add the following definitions inside imx6ull.h, keeping the hardware map out of bsp_rtc.c. The starred offsets/bit use the implementation evidence identified above:

#define SNVS_BASE           0x020CC000u
#define SNVS_LPCR           (SNVS_BASE + 0x38u)
#define SNVS_LPSRTCMR       (SNVS_BASE + 0x50u)
#define SNVS_LPSRTCLR       (SNVS_BASE + 0x54u)
#define SNVS_LPGPR          (SNVS_BASE + 0x68u)
#define LPCR_SRTC_ENV       (1u << 0)
#define SRTC_MSB_MASK       0x7FFFu
#define CCGR_SNVS_HP_GATE   (3u << 18) /* CCGR5[19:18] */
#define CCGR_SNVS_LP_GATE   (3u << 20) /* CCGR5[21:20] */

Create bsp/rtc/bsp_rtc.h:

#ifndef BSP_RTC_H
#define BSP_RTC_H
#include <stdint.h>

int rtc_init(void);
int rtc_get_seconds(uint32_t *seconds);
int rtc_set_seconds(uint32_t seconds);
uint32_t rtc_scratch_read(void);
int rtc_scratch_write(uint32_t value);

#endif

Create bsp/rtc/bsp_rtc.c:

#include "bsp_rtc.h"
#include "bsp_delay.h"
#include "imx6ull.h"

static int rtc_enable(unsigned enable)
{
    uint32_t control = REG(SNVS_LPCR);
    if (enable != 0u)
        control |= LPCR_SRTC_ENV;
    else
        control &= ~LPCR_SRTC_ENV;
    REG(SNVS_LPCR) = control;

    for (unsigned attempt = 0u; attempt < 1000u; ++attempt) {
        unsigned running = (REG(SNVS_LPCR) & LPCR_SRTC_ENV) != 0u;
        if (running == (enable != 0u))
            return 0;
        udelay(10u);
    }
    return -1;
}

int rtc_init(void)
{
    REG(CCM_CCGR5) |= CCGR_SNVS_HP_GATE | CCGR_SNVS_LP_GATE;
    return rtc_enable(1u);           /* Preserve the existing counter value. */
}

static uint64_t rtc_raw(void)
{
    uint32_t hi = REG(SNVS_LPSRTCMR) & SRTC_MSB_MASK;
    uint32_t lo = REG(SNVS_LPSRTCLR);
    return ((uint64_t)hi << 32) | lo;
}

int rtc_get_seconds(uint32_t *seconds)
{
    if (seconds == 0)
        return -1;

    /* Compare complete samples, not only the upper word. */
    uint64_t previous = rtc_raw();
    for (unsigned attempt = 0u; attempt < 100u; ++attempt) {
        uint64_t current = rtc_raw();
        if (current == previous) {
            *seconds = (uint32_t)(current >> 15);
            return 0;
        }
        previous = current;
    }
    return -1;                      /* No output update on failure. */
}

int rtc_set_seconds(uint32_t seconds)
{
    if (rtc_enable(0u) != 0)
        return -1;                  /* Never write a running/locked counter. */

    REG(SNVS_LPSRTCLR) = seconds << 15;
    REG(SNVS_LPSRTCMR) = seconds >> 17;
    return rtc_enable(1u);
}

uint32_t rtc_scratch_read(void)
{
    return REG(SNVS_LPGPR);
}

int rtc_scratch_write(uint32_t value)
{
    REG(SNVS_LPGPR) = value;
    for (unsigned attempt = 0u; attempt < 1000u; ++attempt) {
        if (REG(SNVS_LPGPR) == value)
            return 0;
        udelay(10u);
    }
    return -1;
}

The setter clears SRTC_ENV, waits for the observed state, writes the low word and high word with fractional bits zero, then re-enables and waits again. It preserves the other LPCR fields. At most 1000 failed polls request 10 us delays: roughly 10 ms plus GPT guard ticks and software overhead, not a hard wall-clock deadline. This assumes GPT delays already work. A failed restart can leave the counter stopped. Report the error and inspect access/lock/clock state rather than proceeding as though time was set.

RM 48.6.2 describes both asynchronous sampling and a split-register update hazard. A high-low-high read addresses carry between words but not every partially synchronized value. This small driver requires two identical whole-counter samples, with a bounded retry. Linux instead accepts a small forward difference between full samples. Equality is practical for fast polled reads between 32 kHz ticks, but can time out on a slow or interrupted access path. Neither a retry count nor compilation certifies the hardware’s clock/synchronization behavior.

A stopped counter can also return a stable value. The getter checks read consistency; enable-state readback and successive time readings tell us whether it is running and advancing.

This driver deliberately does not set HPCOMR.NPSWA_EN. RM 48.7.2 says that bit broadens non-privileged access; privileged execution does not make the write a harmless no-op. Access rights, security state, and locks must already permit this development-board use. The upstream driver also initializes the power-glitch detector and clears status during probe. We do not copy its blanket status clear into a bare-metal security policy: pending tamper/security indications must not be erased just to obtain a successful counter read. A cold-board failure may require vendor-documented SNVS initialization for the exact device/provisioning. Stop there, without guessed security-bit writes, LP reset, or fuse changes.

LPGPR can be locked or cleared by documented reset/tamper behavior. The write helper checks readback and reports failure. That is evidence of a matching read, not proof that a previously equal value was newly written or that it will survive power loss. Use only a board on which this register is not owned by boot/security software. Do not interpret arbitrary retained data as tamper-proof storage.

18C.5 Counter application

This program first reads the existing counter. It does not reset time on every boot or infer time validity from a marker. SET_RTC_ON_THIS_BOOT=0 preserves the existing count. The alternative value 1 selects a deliberate initialization operation, not a normal restart policy. Any retention comparison requires the read-only-time version and no intervening bootloader or Linux RTC driver that resets the counter.

The application uses the Chapter 12 mini-printf formats %u and %02u; its formatter does not support %lu or a 64-bit length modifier. Cast variadic arguments to the unsigned type it expects.

#include <stdint.h>
#include "bsp_clk.h"
#include "bsp_uart.h"
#include "bsp_gpt.h"
#include "bsp_delay.h"
#include "bsp_rtc.h"

#define SET_RTC_ON_THIS_BOOT 0

int printf(const char *fmt, ...);

static void stop(const char *message)
{
    printf("%s\r\n", message);
    for (;;) { }
}

static void print_seconds(uint32_t seconds)
{
    uint32_t days = seconds / 86400u;
    uint32_t rest = seconds % 86400u;
    printf("%u days, %02u:%02u:%02u",
           (unsigned)days, (unsigned)(rest / 3600u),
           (unsigned)((rest / 60u) % 60u), (unsigned)(rest % 60u));
}

int main(void)
{
    clk_enable_lab_gates();
    uart_init();
    uint32_t ipg_hz = clocks_get_ipg_hz();
    if (gpt_init(ipg_hz) != 0)
        stop("GPT setup failed; inspect the clock audit.");
    if (rtc_init() != 0)
        stop("RTC enable timed out; inspect clocks, access, and locks.");

    if (SET_RTC_ON_THIS_BOOT != 0) {
        if (rtc_set_seconds(0u) != 0)
            stop("RTC set failed.");
        if (rtc_scratch_write(0x52544331u) != 0)
            stop("LPGPR readback failed; do not claim retention.");
    }
    printf("LPGPR = 0x%08x\r\n", (unsigned)rtc_scratch_read());

    for (;;) {
        uint32_t seconds;
        if (rtc_get_seconds(&seconds) != 0)
            stop("RTC read did not stabilize.");
        printf("[RTC = %u s] ", (unsigned)seconds);
        print_seconds(seconds);
        printf("\r\n");
        mdelay(1000u);
    }
}

With the one-time zero setting, the display means elapsed time since that setting, including time the CPU was off. It is not this boot’s uptime. If you instead set Unix seconds, the same day/hour decomposition remains a numeric interval; it is not yet a date conversion. UART output and the foreground delay also mean lines are not an exact one-second measurement cadence. Compare counter differences with an independent elapsed-time source.

18C.6 Retention across main-power loss

The case is controlled main-power removal, not an induced brown-out. The backup supply must remain valid throughout. Undervoltage and rail manipulation are not part of this retention model.

Before removing anything, confirm the supplier-approved backup arrangement, the board revision, and all main-power/back-power paths. Follow the Chapter 8 checks and the datasheet’s supply order. The supplied schematics alone do not establish a universal unplugging recipe.

A one-time initialization establishes zero and a marker. Subsequent images use SET_RTC_ON_THIS_BOOT=0, so startup observes rather than replaces that state. With the verified SNVS supply maintained, controlled main-power loss removes CPU access without necessarily stopping the LP counter. DC input, USB-TTL, USB-OTG, debug adapters and powered add-ons all matter to this power boundary. Disconnecting one VBUS cable does not establish that main rails are off.

After main power returns, the same read-only-time image reaches the counter through the fresh-ROM route. The counter difference corresponds to all elapsed time between readings, including shutdown, the off interval, startup and download. An independent time reference and a separate LPGPR reading distinguish elapsed-time continuity from marker retention. This is an explanatory case, not a recorded physical test.

A retained marker and an advancing counter test different things. A marker can remain while the counter stops; a running counter does not prove that every retained register is valid. Startup and download time cannot be omitted from the comparison. If the readings disagree, investigate the supply, clock, resets, and intervening firmware.

18C.7 Key Notes

  • The LP counter’s 47 bits represent 32.768 kHz ticks, including 15 fractional bits. Whole seconds still need a software-chosen epoch and calendar conversion. Zero is not a valid wall-clock setting by itself.

  • LP retention and CPU access have different power requirements. A valid backup supply can retain state while the main-powered HP interface is unavailable. Main-power cycling, warm reset and LP POR are not interchangeable events.

  • Split-register reads cross a synchronization boundary. Two identical whole-counter samples check consistency, while successive values and enable state address whether the counter is advancing. A stable value alone can belong to a stopped counter.

  • Setting time is a state transition: observed disable, low/high writes and observed re-enable. GPT-backed polling requires its delay source first, and failure can leave the counter stopped rather than establish a new time.

  • LPGPR is one retained 32-bit word with an owner. A marker and a software boot count cannot independently occupy it. A count would represent executions reaching the update, not every reset or tamper-proof history.

  • Retention comparisons include the entire read-to-read interval and require firmware that does not reset time. Marker survival does not establish oscillator accuracy or counter continuity. Access-policy writes and security-status clears are not harmless ways to obtain a successful read.

  • A Unix-seconds interface needs bounded parsing and an explicit UTC convention before calendar/timezone presentation. Backup loss also needs an invalid-state policy. Physical backup removal requires the approved supply order with all other sources off. Never pull a cell from a powered board or short a supply to force reset.

18C.8 Pitfalls

  • Confusing 47-bit ticks with seconds. The high register contributes 15 bits, the low 32; the lowest 15 bits are fractional. One tick is not one second.

  • Using an LP-relative offset with the full base. Linux may add 0x34 before its LP-local offsets. Here +0x50 and +0x54 are already relative to 0x020CC000.

  • Reading only high-low-high. Carry protection alone does not address asynchronous sampling. Compare full samples and report exhausted retries.

  • Writing before observed disable. Do not merely clear SRTC_ENV and immediately write the counter. The transition crosses clock domains, and locks/access state can prevent it.

  • Treating access-policy writes as harmless. NPSWA_EN changes who can access privileged registers. Do not broaden permissions, clear security status, or program locks/fuses for this example.

  • Assuming six scratch words. This subset uses only the documented 32-bit LPGPR. Other SoC variants and separate GPR blocks are not evidence for consecutive scratch RAM here.

  • A marker that proves too much. It is application data, not proof of battery health, RTC accuracy, or resistance to resets/tampering.

  • A frozen counter with a readable interface. Enable readback alone is not proof that the 32 kHz timebase advances. Check successive seconds as well as control state.

18C.9 Going deeper

  • IMX6ULLRM Rev. 1, Chapter 48: HP/LP domains, synchronization guidance, locks, access policy, and LPGPR. Note its LP RTC field omissions.

  • Supplied industrial/commercial datasheets, Sections 4.1.6 and 4.2, plus MINI sheet 4 / CORE sheets 2, 6, 8: supply states, ordering, crystal, and the real backup route.

  • AN5350, i.MX 6ULL Migration Guide, and the linked NXP clarification: the UL-to-ULL SNVS relationship and the missing public register fields.

  • Linux drivers/rtc/rtc-snvs.c: the LP offsets, 47-bit conversion, full-sample retry, enable/disable acknowledgement, and separate alarm setup. Chapter 48 introduces the Linux RTC interface.

  • POSIX time(), gmtime(), localtime(): software epoch/calendar/timezone services. They do not supply a bare-metal RTC driver merely by being declared.

Chapters 18A-18C supplement Part II. The button and RTC implementations use the Chapter 18A layout and earlier startup, UART, and delay code; they are not independent copy-and-boot projects. From here, Chapter 19 moves to U-Boot, which prepares hardware and loads the next image before Linux runs.
