Chapter 24: Workflows, TFTP, NFS, USB-OTG¶

FIT: Flattened Image Tree, U-Boot’s container format for kernels, DTBs, initramfs images, hashes, and signatures.

What: stop reflashing the SD card. From this chapter on, every kernel change and every rootfs change is visible on the board within seconds, over the wire, TFTP for the kernel + DTB, NFS for the rootfs, USB-OTG (uuu) for recovery. MCU bridge: Think of the rootfs as the firmware image’s file-backed runtime environment. On an MCU you link everything into flash. On Linux, programs and config live in this mounted tree. NFS: Network File System, which lets the target mount a host directory over Ethernet during development. TFTP: Trivial File Transfer Protocol, a simple network protocol U-Boot commonly uses to fetch kernels from the host. rootfs: root filesystem, the directory tree mounted at / that contains /bin, /etc, /dev, and libraries.

Why: Iteration speed bounds productivity. SD-reflash takes 1–2 minutes per cycle. TFTP+NFS takes 5–10 seconds. Across hundreds of kernel builds in Parts IV–VI, that adds up to days. The workflow in this chapter is what the rest of the book assumes.

Focus: the single mental loop: edit a file on the host, the target sees it immediately. That loop is what turns embedded Linux from a build-and-flash cycle into real development.

24.1 Three transports, three jobs¶

Transport	What it carries	When used
TFTP	Kernel `zImage`, device tree `.dtb`, FIT `.itb`	Every kernel rebuild
NFS	The entire root filesystem	Every userspace change
USB-OTG (SDP via `uuu`)	A full image stack (SPL + U-Boot + kernel + rootfs)	Bricked-board recovery; first-time flashing

Each was set up in Chapter 3 (tftpd-hpa, nfs-kernel-server, uuu/imx_usb_loader). This chapter ties them into a coherent workflow.

24.2 TFTP for the kernel¶

Stage layout on the host¶

/srv/tftp/                     # owned by your user (Ch 3 §3.6)
├── zImage                     # symlink → ~/imx6ull/src/linux/arch/arm/boot/zImage
├── imx6ull-pa-mini.dtb        # symlink → ~/.../arch/arm/boot/dts/...
├── boot.itb                   # FIT image (if you use Ch 23's flow)
└── rescue-zImage              # known-good backup

The symlinks let you make in the kernel tree and the new artefacts are immediately available to TFTP, no copy step.

$ cd /srv/tftp
$ ln -s ~/imx6ull/src/linux/arch/arm/boot/zImage .
$ ln -s ~/imx6ull/src/linux/arch/arm/boot/dts/nxp/imx/imx6ull-pa-mini.dtb .

TFTP from U-Boot¶

=> setenv ipaddr 192.168.7.2
=> setenv serverip 192.168.7.1
=> setenv loadaddr 0x82000000
=> setenv fdt_addr 0x83000000
=> setenv fdtfile imx6ull-pa-mini.dtb

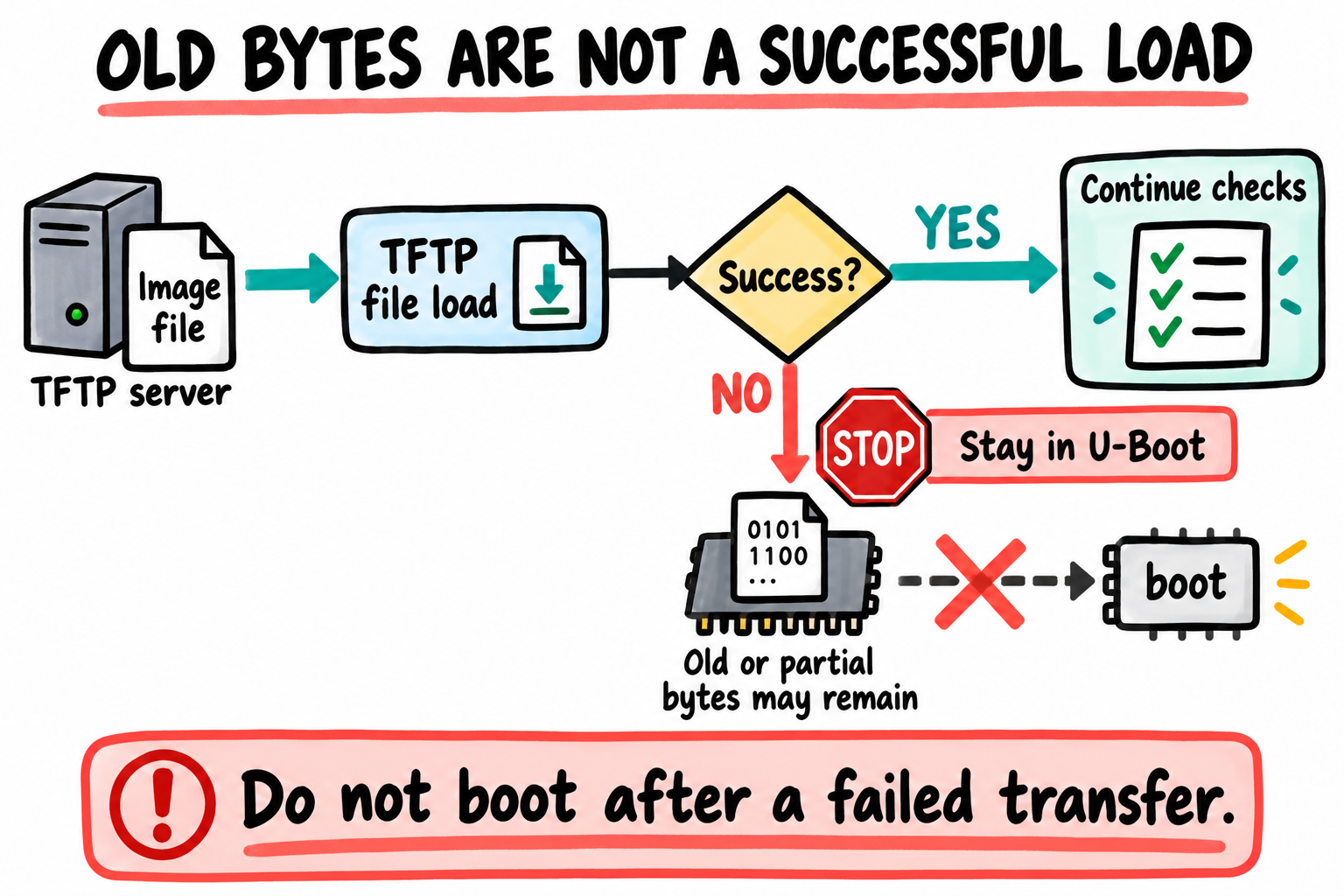

=> tftp ${loadaddr} zImage
Using FEC0 device
TFTP from server 192.168.7.1; our IP address is 192.168.7.2
Filename 'zImage'.
Load address: 0x82000000
Loading: ##################################### 4.8 MiB/s
done
Bytes transferred = 6291456 (600000 hex)

=> tftp ${fdt_addr} ${fdtfile}
Loading: ###  20 KiB/s
done
Bytes transferred = 56320 (dc00 hex)

=> bootz ${loadaddr} - ${fdt_addr}
## Booting kernel from Legacy Image at 82000000 ...
...

Save these into bootcmd:

=> setenv bootcmd 'tftp ${loadaddr} zImage; tftp ${fdt_addr} ${fdtfile}; bootz ${loadaddr} - ${fdt_addr}'
=> saveenv

Now the boot sequence is: power on → ROM → SPL → U-Boot → TFTP → kernel. No SD-card writes, ever.

MCU bridge: Think of SPL like the tiny early startup code that runs from internal SRAM before DDR is usable. SPL: Secondary Program Loader, a tiny first U-Boot stage that fits in OCRAM and initializes DDR. U-Boot: the bootloader that initializes enough hardware to load and start the Linux kernel.

Speed¶

TFTP runs at ~1 MB/s on 10/100 Ethernet (UDP, small windows). A 6 MB zImage arrives in ~6 seconds. Faster than dd, eject, insert, boot.

24.3 NFS for the rootfs¶

Export from the host¶

Configured in Chapter 3 §3.7:

$ cat /etc/exports
/home/you/imx6ull/rootfs *(rw,sync,no_root_squash,no_subtree_check)

Populate the rootfs in the exported directory (we’ll do this properly in Part V. For now a Buildroot-generated rootfs works):

Buildroot: a configuration-driven build system that produces a complete root filesystem and related images.

$ tar -xf ~/buildroot-output/rootfs.tar -C ~/imx6ull/rootfs/
$ ls ~/imx6ull/rootfs/
bin  dev  etc  lib  proc  root  sbin  sys  tmp  usr  var

Restart the NFS server to pick up new content:

$ sudo exportfs -ra

NFS-root from the kernel cmdline¶

=> setenv bootargs 'console=ttymxc0,115200 root=/dev/nfs nfsroot=192.168.7.1:/home/you/imx6ull/rootfs,vers=3,nolock,tcp ip=192.168.7.2:192.168.7.1:192.168.7.1:255.255.255.0:pa-mini:eth0:off rw'
=> saveenv
=> run bootcmd

The ip= token format is client::gateway:netmask::interface:autoconf. Each colon-separated field is positional. Setting them explicitly avoids DHCP delays.

When the kernel boots:

[    7.812345] Sending DHCP requests . OK
[    7.834567] IP-Config: Got nfsroot answers from 192.168.7.1
[    8.012345] VFS: Mounted root (nfs filesystem) on device 0:16.
[    8.123456] Run /sbin/init as init process
                Welcome to your i.MX6ULL board!
target login: root
target#

Now: edit a file in ~/imx6ull/rootfs/etc/... on the host. The target sees the change on next read. No reboot needed for userspace changes.

What can’t be on NFS¶

Privilege boundary: $ means normal user. # or sudo means root and can change host or target state. After a privileged command, verify the expected device, service, or file appears before continuing. Roll back by undoing the config change or stopping the service you just enabled.

Kernel modules. Modules loaded by modprobe come from /lib/modules/... on the rootfs, which is NFS, that works. But the running kernel itself is not from NFS. It was TFTP-loaded.
Device tree blobs. Same, TFTP, not NFS.
The bootloader. SD card or eMMC.

So the boot chain has three transports active simultaneously: SD/eMMC for U-Boot, TFTP for kernel/DTB, NFS for everything in user space.

Speed and reliability¶

NFS over wired 100 Mbit Ethernet is consistently fast (~10 MB/s read). NFS over Wi-Fi is occasionally slow and occasionally drops packets, not recommended for the root mount. If your Wi-Fi USB driver is being developed (Chapter 55E), keep an Ethernet cable plugged in.

A common boot-time hang is “NFS mount timed out.” Almost always the cause is a server-side firewall, wrong export options, or a wrong kernel cmdline path. Diagnose with the kernel cmdline nfs.callback_tcpport=0 and nfsroot=...,debug (kernel must be built with CONFIG_NFS_DEBUG).

24.4 USB-OTG recovery via `uuu`¶

When the board cannot boot from SD (the boot sector is corrupt, the SPL won’t run, or U-Boot panics on init), USB-OTG is your way back. The same uuu we used in Chapter 9 pushes a full image stack into RAM and runs U-Boot from there, with no persistent change to the board’s storage.

A complete `uuu` recipe¶

flash_all.uuu:

uuu_version 1.5.0

SDP: boot -f SPL
SDPU: write -f u-boot-dtb.imx -addr 0x87800000
SDPU: jump

# Now full U-Boot is running.  Tell it to flash the SD card from the host.
FB: ucmd setenv fastboot_buffer 0x82000000
FB: ucmd setenv fastboot_size 0x10000000
FB: download zImage
FB: ucmd mmc dev 0
FB: ucmd mmc write ${fastboot_buffer} 0x2000 0x6000   # write zImage to MMC

(Real recipes are more involved. This is the structure.)

Run from the host:

$ uuu flash_all.uuu

The board needs to be in SDP mode (boot switch in the “USB” position, USB-OTG cable connected to host). uuu enumerates the i.MX6ULL Boot ROM, pushes SPL, runs it, the SPL hands off to U-Boot in RAM, U-Boot enables Fastboot, uuu then drives fastboot commands to flash the persistent storage.

When to use it¶

First-time flashing a fresh board (or a fresh SD card).
Recovery after corrupting U-Boot or SPL on the persistent storage.
Automated production line: uuu can flash N boards in parallel. Standard NXP practice for factory programming.

For day-to-day development, you do not need uuu. TFTP + NFS is faster and easier. uuu is the safety net.

24.5 The canonical development loop¶

Put it all together. The day-to-day workflow:

                      [you edit code]
                          │
                          ▼
                  ┌────────────────┐
                  │   Host PC      │
                  │                │
                  │ Linux source ──┼──make zImage──► /srv/tftp/zImage (symlink)
                  │                │
                  │ Rootfs tree ───┼─────────────►  /srv/nfs/rootfs/ (already exported)
                  │                │
                  │ TFTP server    │
                  │ NFS server     │
                  └────────────────┘
                          │
                  Ethernet │
                          ▼
                  ┌────────────────┐
                  │   Target       │
                  │                │
                  │  SPL → U-Boot ─┼──TFTP──► kernel + dtb in RAM
                  │                │
                  │  Kernel boots ─┼──NFS───► /home/you/imx6ull/rootfs (mounted as /)
                  │                │
                  └────────────────┘
                          │
                  Serial  │
                          ▼
                    [you read logs]

Time from “edit a kernel file” to “see the change running on the target”:

$ vim drivers/foo.c
$ make -j$(nproc) zImage modules
$ make modules_install INSTALL_MOD_PATH=/home/you/imx6ull/rootfs
$ # On the board:
target# reboot

~30 seconds for a kernel-source change to be observable. No other workflow on this hardware iterates this fast.

For user-space changes, it’s even faster:

$ vim /srv/nfs/rootfs/usr/bin/myapp.sh   # edit directly in the exported tree
$ # On the board:
target# myapp.sh                          # see it immediately

No reboot needed.

24.6 Some useful U-Boot env helpers¶

Save these in your environment for the development loop:

nfsroot_args=root=/dev/nfs nfsroot=${serverip}:${nfspath},vers=3,nolock,tcp \
             ip=${ipaddr}:${serverip}:${gatewayip}:${netmask}::eth0:off

devel_bootargs=console=${console} ${nfsroot_args} rw rootwait

devel_boot=tftp ${loadaddr} zImage; \
            tftp ${fdt_addr} ${fdtfile}; \
            setenv bootargs ${devel_bootargs}; \
            bootz ${loadaddr} - ${fdt_addr}

bootcmd=run devel_boot

Then:

=> setenv serverip 192.168.7.1
=> setenv nfspath /home/you/imx6ull/rootfs
=> saveenv

Now every reboot does the full TFTP+NFS loop.

For occasional SD-card boot (when you want to verify the persistent path still works):

sdboot=load mmc 0:1 ${loadaddr} zImage; \
        load mmc 0:1 ${fdt_addr} ${fdtfile}; \
        setenv bootargs console=${console} root=/dev/mmcblk0p2 rw rootwait; \
        bootz ${loadaddr} - ${fdt_addr}

=> run sdboot           # one-shot SD boot, doesn't change autoboot default

24.7 Lab¶

Storage safety: Before any command that names /dev/sdX, run lsblk -o NAME,SIZE,MODEL,TRAN,TYPE,MOUNTPOINTS. Verify the removable card by size and model, unmount its partitions, and stop if the path is not the target card. Writing the wrong /dev node can destroy the host disk.

Set up TFTP boot. Get a kernel loaded from /srv/tftp/zImage and booting on the target. Time the load.
Set up NFS-root. Boot to a shell whose root is the host’s directory. Confirm by editing a file on the host and seeing it on the target.
Touch a kernel source file (echo "no-op" >> drivers/tty/serial/imx.c), make zImage, reboot the board. Verify the new kernel is running (a date in the version banner or a custom string you added).
Set up the full devel_bootargs / devel_boot / bootcmd chain from §24.6. Confirm a fresh power-on goes through the full loop without manual commands.
Practice the uuu recovery. Deliberately wipe the SD card’s first MB (sudo dd if=/dev/zero of=/dev/sdX bs=1M count=1). Boot the board into SDP (boot switch). Run a uuu script that re-flashes SPL + U-Boot. Confirm the board is back.

24.8 Pitfalls¶

Firewall on the host blocking UDP/69 (TFTP) or TCP/2049 (NFS). sudo ufw status. sudo ufw allow tftp. sudo ufw allow nfs. Or disable UFW on the dev host.
NFS root_squash. Without no_root_squash, the target’s root user is mapped to nobody, and file permissions break. Always include no_root_squash in /etc/exports for development. Never on a public network.
NFS v4 by default on modern distros. v4 has different semantics (especially around stale file handles). For embedded, v3 is more reliable. Specify vers=3 in the mount options.
Wrong IP on the target side. ip= cmdline must match the host’s NIC config (Chapter 3 §3.10). Mismatched netmask = silent failure to mount.
TFTP path includes a directory. Some tftpd-hpa configs disable directories for security. Use --secure and serve from /srv/tftp/ directly.
uuu cannot find the device. Check with lsusb | grep 15a2. If absent: boot switch wrong, USB-OTG cable wrong (some are charge-only), or udev rule from Chapter 3 §3.8 missing.

udev: the user-space device manager that reacts to kernel device events and creates policy-driven /dev nodes.

Slow Ethernet PHY auto-negotiation. Some PHYs take 2–3 seconds to come up. Add rootwait to bootargs and ignore the warning.

PHY: physical-layer block or chip that converts digital MAC signals to electrical or radio signals.

24.9 Going deeper¶

Documentation/admin-guide/nfs/nfsroot.rst in the Linux kernel, definitive nfsroot= and ip= cmdline reference.
man tftpd-hpa and man 5 exports, the canonical references for the server configs.
uuu README at https://github.com/nxp-imx/mfgtools, script DSL, every supported command.
Bootlin “Embedded Linux Booting” training: the same workflow in a different style.

End of Part III.

You can build mainline U-Boot, you can port it to a custom board, you understand its boot flow line-by-line, you can write commands and drivers within it, and you have a development loop that doesn’t involve reflashing. Everything from here on assumes you can boot to a U-Boot prompt, network-boot a kernel, and NFS-mount a rootfs.

Part IV begins with Chapter 25, Building mainline Linux for i.MX6ULL. We leave the bootloader behind and start working on the kernel itself.
