Chapter 24F: Watchdog, bootcount, and rollback in U-Boot

The new kernel starts, prints a few lines, and hangs before the application runs. On an MCU you might already have a watchdog that resets this failure. But a reset alone repeats the same bad image. Something must remember that this image was being tried, and choose a different one next time.

We will give U-Boot that piece of memory. Linux will confirm success only after checking the system it actually booted. This is an A/B policy demonstration, not a production updater: authentication, interrupted image writes, metadata durability, and rescue remain separate requirements.

Start with the MINI vendor baseline from Chapter 19: identify the fitted core, reach UART1 through the board’s USB_TTL connector, and establish SD or eMMC access. This chapter then develops the policy against upstream U-Boot v2026.04. The mx6ull_pa_mini target and imx6ull-pa-mini.dts are the book’s modern migration work, not names for the vendor firmware. Do not paste these APIs/configs into the older vendor tree unchanged.

The modern path uses ROM + board-matched DCD + full U-Boot, not SPL. Chapter 22 supplies a complete, host-buildable MINI source/image candidate with documented UART/storage wiring and a source-checked PHY-driver candidate. Its physical operation remains unqualified. CONFIG_ENV_IS_NOWHERE=y means its environment is RAM-only, not that the whole firmware is merely a mock; it cannot yet implement persistent A/B. Keep the vendor baseline available and pass the separate storage/persistence gate in Section 24F.3.

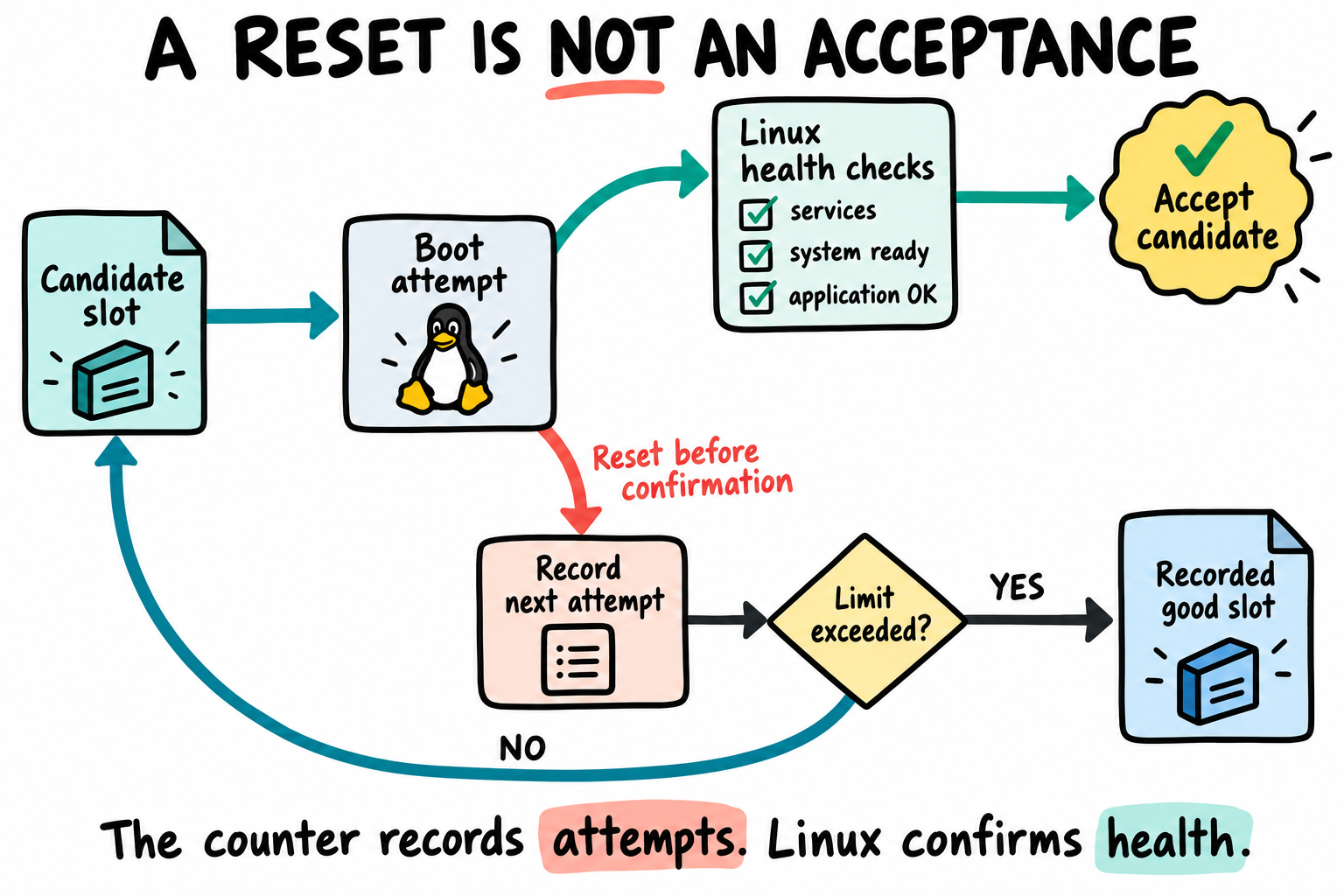

24F.1 The problem in one timeline

After storage and persistence are qualified, suppose A is known good and B is a newly written candidate:

persist candidate B, with attempt counter = 0
    |
next U-Boot: persist attempt 1, then try B
    |
Linux hangs before health confirmation
    |
watchdog reset: next U-Boot persists attempt 2, then tries B
    |
after the permitted attempts: choose known-good A

The counter records attempts, not detected kernel failures. A manual reset or power loss before confirmation also consumes an attempt. A hang without a reset gives U-Boot no opportunity to choose another slot.

Decision	Owner
Which complete image set to try	U-Boot policy and persistent metadata
Whether an attempt was recorded	Bootcount backend
Whether the running image is healthy	Linux health service
Whether a stalled system resets	Hardware watchdog and feeding policy

Reset gives U-Boot another decision point, not proof of success. Every candidate attempt needs recorded metadata, and Linux must identify and check the running image before accepting it. This is a policy model, not a guarantee that storage saves are durable.

24F.2 Terms

Term	Meaning here
Slot A or B	A matching kernel, DTB, and root filesystem set
active_slot	Next slot U-Boot intends to boot; not proof of what Linux is running
good_slot	Last slot accepted by the health service
Candidate	Installed but not yet accepted slot
bootcount	Attempts since the candidate was armed, with backend-specific persistence
bootlimit	Limit compared with the incremented count using greater than
altbootcmd	Command selected instead of bootcmd when the limit is exceeded

With a counter initially zero and bootlimit=3, counts 1, 2, and 3 try the candidate. Count 4 selects altbootcmd. Zero or a missing bootlimit disables the limit check. Without the alternate command the intended automatic rollback cannot happen. See the bootcount documentation.

24F.3 Example storage layout

The supplied MINI V2.2 baseboard has a TF/microSD socket on USDHC1. The core-board design offers eMMC on USDHC2 or NAND, depending on the fitted variant; the two flash drawings do not mean both chips are installed. The SDIO Wi-Fi connector shares USDHC1 with the TF socket, so do not use both during this example. These routes are visible on MINI schematic sheets 1-2 and core sheet 4, and explained in the guide’s MINI Sections 5.2.3 and 5.4.16-17.

Use an identified spare microSD as the first disposable A/B medium, leaving the vendor baseline and accepted installation recoverable. An eMMC-core owner can later qualify the eMMC user area separately. A NAND-core owner can still consider the microSD example: the MMC/PARTUUID policy below is not a NAND or UBI updater. Do not translate its partition numbers into NAND offsets.

Record the baseline’s mmc list, mmc info, part list, environment settings, and Linux storage identity before planning changes. Hardware USDHC1/2 names do not establish U-Boot sequence numbers. Chapter 22’s modern candidate deliberately uses ENV_IS_NOWHERE: environment changes, candidate flags, slot choice and bootcount cannot survive reset. ENV_SIZE alone reserves no media range. Neither a vendor storage driver nor the modern MINI candidate allocates the new A/B layout for you.

Mandatory persistence and layout gate before hardware A/B:

1. Qualify the actual MINI boot path, DDR, storage wiring and device identity. Record the U-Boot device/hardware partition and the corresponding Linux device; controller numbering is not interchangeable between them.

2. Review a complete byte-range map for that medium: ROM boot image, partition-table metadata, environment copy or copies, and both slots. Reserve non-overlapping ranges explicitly, including any backup partition table. No MINI offset or partition allocation is supplied by this chapter.

3. Select a persistent environment backend supported by that storage and configure its approved device, hardware partition, offset, size and any redundancy. Replace ENV_IS_NOWHERE only in this qualified hardware variant; retain it for host modeling and the nonpersistent candidate.

4. Under the approved storage-qualification procedure, establish successful environment writes, readback and reload across the required reset/power cycles, plus a defined invalid-environment/recovery path. Merely seeing a RAM variable change or compiling BOOTCOUNT_ENV does not pass this gate.

5. Before Linux can confirm an attempt, establish its matching fw_env.config from that same approved layout and compare read-only results with U-Boot. Keep the modern example build’s autoboot disabled until its boot command, load ranges and recovery policy have also been reviewed.

Without this evidence, stop at source inspection and host fixtures. This is a prerequisite for the hardware demonstration, not production power-cut qualification. Only after it passes may a disposable, identified lab medium use the proposed layout below. The table is not a disk creation recipe, and does not establish that any of these partitions already exist.

U-Boot partition	Name	Content
mmc 0:1	boot_a	A’s zImage and imx6ull-pa-mini.dtb
mmc 0:2	rootfs_a	A’s ext4 root filesystem
mmc 0:3	boot_b	B’s zImage and imx6ull-pa-mini.dtb
mmc 0:4	rootfs_b	B’s ext4 root filesystem

Confirm device identity with mmc list, mmc dev 0, mmc info, and part list mmc 0. U-Boot MMC numbering is not Linux /dev/mmcblkN numbering. We obtain the root partition’s PARTUUID, its partition-table identity, instead of assuming /dev/mmcblk0p2.

Initially A and B may have identical contents, but then kernel version alone cannot distinguish them. Root PARTUUID and slot markers must still differ. Later use uniquely identified kernel builds.

24F.4 Files changed in this chapter

File or area	Responsibility
configs/mx6ull_pa_mini_defconfig	Bootcount/commands; a separately qualified persistent environment backend for the hardware variant
arch/arm/dts/imx6ull-pa-mini.dts	Watchdog availability and board reset wiring
include/configs/mx6ull_pa_mini.h	A/B defaults, merged into the existing environment once
Linux rootfs	Environment tools, matching storage description, per-slot identity, health service

In the qualified persistent variant, compiled defaults do not replace a saved environment. Inspect printenv after installing a build. Import only reviewed variables; do not erase unrelated identity/network settings with a blanket environment reset.

24F.5 Enable the U-Boot features

The v2026.04 fragment is:

CONFIG_BOOTCOUNT_LIMIT=y
CONFIG_BOOTCOUNT_ENV=y
CONFIG_WDT=y
CONFIG_IMX_WATCHDOG=y
CONFIG_CMD_WDT=y
# CONFIG_WATCHDOG_AUTOSTART is not set
CONFIG_HUSH_PARSER=y
CONFIG_CMD_BOOTZ=y
CONFIG_CMD_MMC=y
CONFIG_CMD_PART=y
CONFIG_PARTITION_UUIDS=y
CONFIG_CMD_FS_GENERIC=y
CONFIG_CMD_EXT4=y
CONFIG_CMD_FAT=y

IMX_WATCHDOG, not WDT_IMX2, selects this release’s i.MX driver. WDT enables the driver-model watchdog API. Leave autostart off for initial command/policy work; later qualify the watchdog handoff deliberately. Check the generated .config, including filesystem support selected by commands.

BOOTCOUNT_ENV is not an environment-storage driver. This fragment does not turn ENV_IS_NOWHERE into persistent storage; a RAM-only build can host the policy example but not retain attempts. Complete Section 24F.3’s gate before hardware trials, even if the vendor baseline already saves its own environment. Its storage map must be reconciled with the modern build and the new slots. Do not restore EVK MMC settings as assumed MINI values. In bootcount_env.c, upgrade_available nonzero enables loading the stored count and saving each increment through env_save(). With it zero, the backend loads zero and does not save increments; a RAM bootcount may still appear. This backend does not propagate environment-save errors. Failed persistence can defeat the attempt bound.

Build your reviewed v2026.04 MINI migration source in its own checkout, separate from Chapter 19’s vendor source:

$ . ~/imx6ull/scripts/env.sh
$ cd ~/imx6ull/src/u-boot
$ make O="$IMX6ULL_HOME/build/uboot-ab" ARCH=arm CROSS_COMPILE="$CROSS_COMPILE" mx6ull_pa_mini_defconfig
$ make O="$IMX6ULL_HOME/build/uboot-ab" ARCH=arm CROSS_COMPILE="$CROSS_COMPILE" -j "$(nproc)"

Build success does not validate the MINI’s DDR or reset circuit.

24F.6 Counter evolution across attempts

The counter is a state-machine input, not a Linux-health measurement. With an initial count of zero, an active upgrade and bootlimit=3, the intended selection is:

Attempt	Count after increment	Dispatch
First	1	Candidate command
Second	2	Candidate command
Third	3	Candidate command
Fourth	4	Alternate command

This model assumes the count survives each reset and no health-confirmation step clears it. Interrupting autoboot still occurs after U-Boot’s increment, so the counter does not identify why the previous attempt stopped.

Chapter 22’s ENV_IS_NOWHERE candidate cannot provide this persistence. Section 24F.3 defines the storage and recovery evidence needed for a separate hardware variant. The table explains dispatch without requiring reader resets, environment writes or a particular storage allocation.

24F.7 A/B environment variables

Append this demonstration macro to the existing CFG_EXTRA_ENV_SETTINGS in mx6ull_pa_mini.h. Remove duplicate bootcmd/altbootcmd definitions; they need one owner. Keep the port’s CONFIG_BOOTCOMMAND default consistent. Use it as a host fixture before qualification, or in the hardware variant only after Section 24F.3’s gate. Do not enable the candidate’s autoboot merely because this macro compiles.

#define PA_MINI_AB_ENV \
    "active_slot=A\0" \
    "good_slot=A\0" \
    "upgrade_available=0\0" \
    "bootlimit=3\0" \
    "bootcount=0\0" \
    "ab_mmc=0\0" \
    "select_slot=if test \"${active_slot}\" = \"A\"; then " \
        "setenv bootpart 0:1 && setenv rootpart 0:2; " \
    "elif test \"${active_slot}\" = \"B\"; then " \
        "setenv bootpart 0:3 && setenv rootpart 0:4; " \
    "else echo Invalid active slot; false; fi\0" \
    "boot_selected=if run select_slot && mmc dev ${ab_mmc} && " \
        "mmc rescan && part uuid mmc ${rootpart} rootuuid; then " \
        "if setenv bootargs console=ttymxc0,115200 " \
            "root=PARTUUID=${rootuuid} rw rootwait ab.slot=${active_slot}; then " \
        "if load mmc ${bootpart} ${kernel_addr_r} zImage && " \
            "load mmc ${bootpart} ${fdt_addr_r} imx6ull-pa-mini.dtb; then " \
            "bootz ${kernel_addr_r} - ${fdt_addr_r}; " \
        "else echo Slot image load failed; false; fi; " \
        "else echo Boot arguments unavailable; false; fi; " \
    "else echo Slot selection or MMC failed; false; fi\0" \
    "rollback=if test \"${upgrade_available}\" = \"1\" && " \
        "test \"${active_slot}\" != \"${good_slot}\"; then " \
        "if test \"${good_slot}\" = \"A\" || test \"${good_slot}\" = \"B\"; then " \
            "if setenv active_slot ${good_slot} && " \
                "setenv upgrade_available 0 && setenv bootcount 0 && " \
                "saveenv; then run boot_selected; " \
            "else echo Rollback metadata save failed; false; fi; " \
        "else echo Invalid good slot; false; fi; " \
    "else echo No valid pending rollback; false; fi\0" \
    "bootcmd=run boot_selected\0" \
    "altbootcmd=run rollback\0"

Supply qualified, non-overlapping kernel_addr_r and fdt_addr_r for the actual hardware variant. Chapter 22 supplies a source memory layout, but its load ranges still require physical DDR and overlap qualification for this A/B workflow. No additional RAM addresses are guessed here. Device 0 is fixed in both partition mappings: changing ab_mmc alone does not change those mappings.

The && operators matter. A failed kernel or DTB load must not call bootz with stale bytes from a previous attempt. If bootz returns an error, the command returns to U-Boot, without accepting the image. This demo does not immediately reset or try another slot after a load failure; manual recovery or a qualified watchdog supplies the next decision opportunity.

The alternate path checks that a candidate is pending before changing slot state. Recovery and power policy in Chapters 24G/H must override both commands, not just the normal path.

24F.8 Mark slot B as candidate

Only after Section 24F.3’s gate passes and all B components are written, flushed, and verified, with accepted A preserved, arm B:

pa-mini=> setenv active_slot B
pa-mini=> setenv good_slot A
pa-mini=> setenv upgrade_available 1
pa-mini=> setenv bootcount 0
pa-mini=> saveenv

Reset only after a successful save. good_slot A is valid here because the lab already accepted A. On an A update while B is good, reverse the roles; never hard-code A as the accepted slot in an updater.

One save groups these fields into one environment blob. It does not make the storage write power-cut atomic. Candidate metadata is the final step, not the first step before copying files.

24F.9 Linux marks the boot good

First prove that Linux’s environment tools access the same bytes as U-Boot. The modern NOWHERE candidate has no persistent environment bytes for these tools; do not install or run a hardware writer against a guessed location. There is a concrete vendor starting point to inspect: the supplied public vendor tree’s include/configs/mx6ull_alientek_emmc.h defines fallback MMC environment device 1 (commented USDHC2), hardware partition 0 (user area), byte offset 12 * 64 KiB = 0xC0000, and size 8 KiB = 0x2000 in its MMC branch. These are that source target’s defaults, not authorization to use them on a microSD, NAND variant, changed build, or repartitioned eMMC. In that vendor tree, mmc_get_env_dev() in arch/arm/cpu/armv7/mx6/soc.c derives the device from the boot controller when booted from SD/MMC; the board mapping can adjust it. Thus an SD-booted session need not save to the header’s device 1. Check the generated configuration and this runtime mapping before deriving Linux’s path. The /etc/fw_env.config shape below requires the approved matching layout:

<matching Linux block device/hardware partition> <approved byte offset> <approved environment byte size>

Derive the real device, hardware partition, offset, size, and redundant copy from your generated config and env/mmc.c board overrides. Offsets are bytes, not sectors; a partition path changes the origin. eMMC boot partitions are not user-area partitions. Compare read-only fw_printenv with U-Boot printenv before enabling a writer. Stop on CRC/default-environment warnings or a mismatch.

The rootfs builder must install three files under /etc/boot-health/: slot (A or B), root-partuuid (the deployed root partition identity), and kernel-release (intended uname -r). Give distinct builds distinct releases. This script requires findmnt, blkid, flock, environment tools, and a product-specific /usr/libexec/product-health; a minimal BusyBox image may not contain them.

#!/bin/sh
# /usr/sbin/mark-boot-good; run as root after product readiness.
set -efu
die() { echo "mark-boot-good: $*" >&2; exit 1; }
exec 9>/run/boot-metadata.lock
flock -x 9
slot=
for word in $(cat /proc/cmdline); do
    case "$word" in
        ab.slot=*)
            [ -z "$slot" ] || die "duplicate slot token"
            slot=${word#ab.slot=}
            ;;
    esac
done
case "$slot" in A|B) ;; *) die "invalid booted slot" ;; esac
[ "$slot" = "$(cat /etc/boot-health/slot)" ] || die "rootfs slot mismatch"
[ "$(uname -r)" = "$(cat /etc/boot-health/kernel-release)" ] || die "kernel mismatch"
rootdev=$(findmnt -n -o SOURCE --target /)
case "$rootdev" in /dev/*) ;; *) die "unsupported root device" ;; esac
uuid=$(blkid -s PARTUUID -o value "$rootdev")
[ -n "$uuid" ] || die "root has no PARTUUID"
[ "$uuid" = "$(cat /etc/boot-health/root-partuuid)" ] || die "wrong mounted root"
[ "$slot" = "$(fw_printenv -n active_slot)" ] || die "metadata slot mismatch"
pending=$(fw_printenv -n upgrade_available)
case "$pending" in 0) exit 0 ;; 1) ;; *) die "invalid pending flag" ;; esac
test -x /usr/libexec/product-health || die "health check missing"
/usr/libexec/product-health || die "product unhealthy"
batch=$(mktemp /run/boot-good.XXXXXX)
trap 'rm -f "$batch"' EXIT HUP INT TERM
printf 'good_slot %s\nupgrade_available 0\nbootcount 0\n' "$slot" > "$batch"
fw_setenv -s "$batch" || die "metadata write failed"
[ "$(fw_printenv -n good_slot)" = "$slot" ] || die "good slot readback failed"
[ "$(fw_printenv -n upgrade_available)" = 0 ] || die "pending readback failed"
[ "$(fw_printenv -n bootcount)" = 0 ] || die "count readback failed"

The batch requests one update rather than three independent writes. All updater/health writers must share the lock; this script cannot serialize a writer that ignores it. The checks suit a direct block-device ext4 root, not NFS, overlay, or device-mapper roots without adaptation.

These identity checks catch integration mistakes, not malicious substitution. Two kernels sharing a release cannot be cryptographically distinguished this way. Signed images and a trusted update framework provide that stronger contract. Install the script through the rootfs build with executable permissions, invoke it from the actual init system after readiness, and propagate failure. Merely waiting some seconds is not a health test.

24F.10 Watchdog role

Read the reset circuit and watchdog DT properties before starting it. On the supplied core schematic, SNVS_TAMPER9 is labeled nWDOG and joins the reset network; MINI’s RESET button also reaches that network. A net label is not proof that the i.MX watchdog peripheral is muxed onto that pad. Retain the established baseline reset behavior while reviewing the modern driver. UART1_CTS/GPIO1_IO18 belongs to the MINI KEY0 switch, and GPIO1_IO08 to RGB backlight. GPIO1_IO01 instead reaches GBC_KEY/AP_INT on this baseboard; an inherited EVK watchdog-output pinmux there still needs its actual net and accessory ownership reviewed, not a copied KEY0 assumption. fsl,ext-reset-output changes reset routing, not generic reliability. The v2026.04 i.MX driver has no stop operation; wdt stop cannot be relied on to disable a started device.

For an approved idle-board reset test, select the name printed by the command, not a numeric device index:

pa-mini=> wdt list
pa-mini=> wdt dev <name printed by wdt list>
pa-mini=> wdt expire

The last command deliberately resets the board. Never run it during writes or useful product work. wdt start 10000; sleep 20 is not a starvation proof: U-Boot’s cyclic scheduler can keep feeding during sleep or console waits. See wdt usage and drivers/watchdog/wdt-uclass.c.

Qualify the whole handoff: U-Boot starts the watchdog, Linux’s built-in i.MX driver services the same device soon enough, and userspace takes ownership under its required nowayout/close policy. Choose timeouts from measured worst-case paths, including recovery. A driver/daemon may feed independently of application health: verify a stuck product really stops feeding. Acceptance is a one-time event; runtime health supervision continues later.

24F.11 Environment storage warning

With a qualified persistent backend, each candidate attempt rewrites the environment. Save errors do not stop this backend’s bootcount logic.

Storage choice	What still needs proof
RAM-only ENV_IS_NOWHERE	The complete modern candidate can use RAM variables, but cannot retain hardware rollback metadata across reset
Single environment	Torn write can lose policy and count; no production guarantee
Redundant environment	Separate ranges, CRC/selection rules, matching Linux config, power-cut behavior
Filesystem bootcount	Exact backend/config and interrupted filesystem write recovery; a file is not automatically atomic
RTC/SNVS counter	Available backend, retained-register ownership, reset/backup-loss behavior; no automatic MINI backend assumed
Dedicated metadata	Journal/copy protocol, generation/integrity checks, ordering, invalid-state recovery

Redundancy does not prove controller caches are durable or copies cannot fail together. Preserve the accepted image and commit candidate metadata last. An environment recovered from defaults must lead to a deliberately chosen safe path, not an accidental slot choice.

24F.12 Key Notes

• Bootcount measures attempts, not diagnosed kernel failures. With an initial zero and limit three, counts one through three use the candidate and count four selects the alternate command.

• ENV_IS_NOWHERE cannot retain slot/count state across reset. BOOTCOUNT_ENV depends on a separate persistent backend and ignores save errors, so compilation does not establish an attempt bound.

• Candidate metadata is committed after the complete image set is written and verified, with the accepted slot preserved. One environment save groups fields but does not make a torn storage write atomic.

• Linux acceptance checks the running root PARTUUID, kernel release, slot identity and product readiness. Metadata’s intended slot or an elapsed delay is not proof of health.

• Watchdog reset creates the next selection opportunity. U-Boot, Linux and userspace feeding ownership must agree, and routine feeding can conceal a stuck application.

• Recovery and power vetoes cover both bootcmd and altbootcmd. Temporary overrides also interact with whole-environment bootcount saves and must not become persistent policy accidentally.

• A/B rollback is not rescue or power-cut qualification. Both slots, metadata and the load path can fail, requiring an independently recoverable design.

24F.13 Pitfalls

• Calling attempts detected failures. Reset reasons need a separate design.

• Booting stale RAM. Gate both loads before the kernel jump.

• Clearing pending from the wrong system. Check running kernel and root, not just metadata’s intent.

• Missing resets. A hung Linux stays hung without a reset mechanism.

• Assuming counts persist. This backend ignores save errors.

• Treating RAM variables as boot metadata. ENV_IS_NOWHERE cannot retain state across reset; a complete firmware build does not qualify persistence.

• Treating A/B as rescue. Both slots and metadata can fail; keep recovery.

• Overriding only normal boot. Safety choices must cover altbootcmd too.

24F.14 Going deeper

• Supplied IMX6ULL_MINI_V2.2_(Mini_base_plate_schematic).pdf, sheets 1-2, and IMX6ULL_CORE_V2.0_(core_board_schematic).pdf, sheets 1, 4, 5-6: storage routes, fitted-variant choices, and reset/pad ownership.

• Vendor eMMC target header: a baseline map to inspect, not a modern A/B allocation.

• Bootcount API, include/bootcount.h, and common/autoboot.c: increment and selection order.

• MMC environment backend and tool config format.

• Linux watchdog API: feeding, timeout, and close semantics, with driver-specific limitations.

• Part VIII’s update-framework chapters: authenticated images and durable metadata beyond this demonstration.

---
